Warmly noted:We can only provide limited after-sales service. For example, If there is a quality problem of heated bed, we can only send a glass hot bed for replacement.

A LARGE PRINTER

The largest and widely recognized features of Eryone Thinker SE are its large build volume size 300*300*400mm that you could make large project and silent motor driver that print very quiet. very easy to use, very easy maintaince, high successful printing rate,give you perfect print result.definitely the last printer to buy in 2020!

A SUPER QUIET PRINTER

We choose TMC2208 as stepper motor driver and quite fans but powerful which dramatically decreases the noise and improve the printing quality as well. The average operational noise is 49dBA, enjoy your coffee aside the 3D printer is not only a dream.

15 MINIUTES ASSEMBLY

The base and gantry of this 3D printer have been pre-assembled, what you need to do is put those two parts together and wire a few interfaces.

LARGE VOLUME

The printing volume is 300*300*400mm, with carefully-selected components. After 3 steps assembly, the printer can print pretty well, almost no need to calibrate.

POWER RESUME PRINT

Built-in supercapacitor and circuit designing, the mainboard will store the height value of Z-axis when the power off. When the power system resume, the printer can resume the print.

OPEN SOURCE FIRMWARE

We use the Marlin open source firmware. When you want to add advanced features for it. It will no longer be difficult because the open-source firmware has a huge community communicate with each other and help you.

COMPATIBLE WITH AUTO-BED LEVELING SENSORS

With pre-designed interface for BL-touch and capacitive proximity switch, update the firmware to enable the auto-leveling function is easily. Support Bltouch sensor (Not support inductive proximity switch).

Specifications:

Printer and printing properties
Print technology: Fused Filament Fabrication(FDM)
Build volume: 300mmx300mmx400mm
Print precision: 0.05mm
X, Y, Z accuracy: 12.5 μm / 12.5μm / 2.5μm
Filament diameter: 1.75mm
Default nozzle diameter: 0.4mm
Print speed: 30mm/s~145mm/s
Filament support: PLA, PETG, ABS, TPU, etc
Average operating sound: ~49dBA

Software:

Slicer software support: Cura, Simpfily3D, Prusa slic3r, Repetier-host, etc
Print file type: GCO,GCODE
Supported OS: Windows/Mac OS/Linux
Firmware type: Marlin(open source)
File transfer: USB print/Stand-alone SD card print

Electrical:

Power supply unit input: 100~135V/200V~264V 6A 50~60Hz
Power supply unit output: 24V/14.5A,350W
Printer operating voltage: 24V
Printer operating current: 13A
Standby power: ~15W

Physical dimensions:

Desktop space: 510*415*652mm
Shipping dimension: 675 x 550 x 240mm
Nett weight: 9.3kg
Gross weight: 13.6kg

Temperature Environmental conditions:

Nozzle max temperature: 250℃
Heated bed max temperature: 100℃
Nozzle heating time(20℃ ~180℃ )： ~1min
Heated bed heating time(25℃ ~60℃ ): 3min

Environmental conditions:

Operating environment: 10~32℃
Non-operating environment: 0~32℃

Package:

1 x 3D printer

1 x Power supply unit

1 x Tool kit
1x SD card with SD card reader
1x USB cable

1 x 10m Random color PLA
1x Extra gift

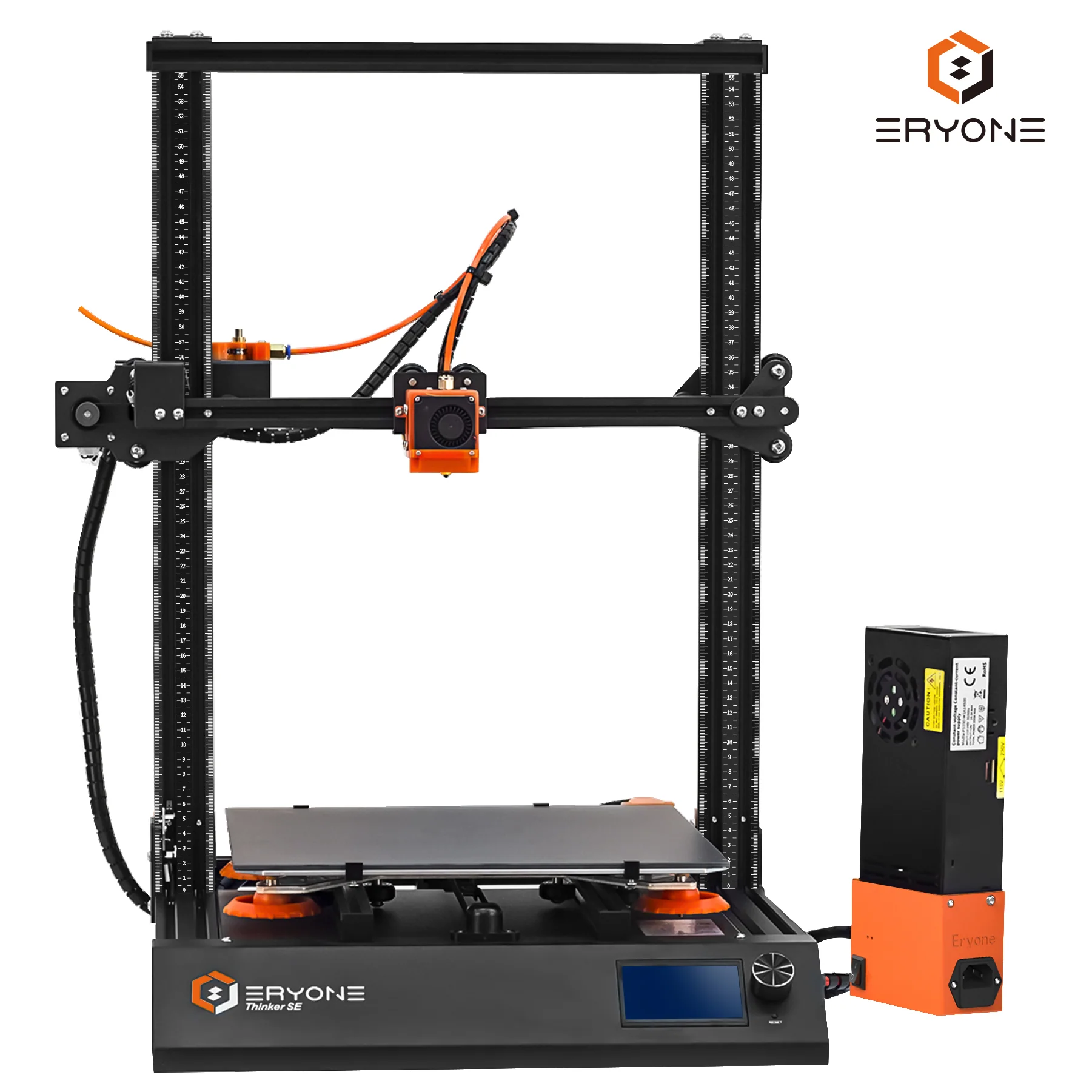

ERYONE Thinker SE 3D PRINTER (EU Only)
